Loading/Unloading Machine

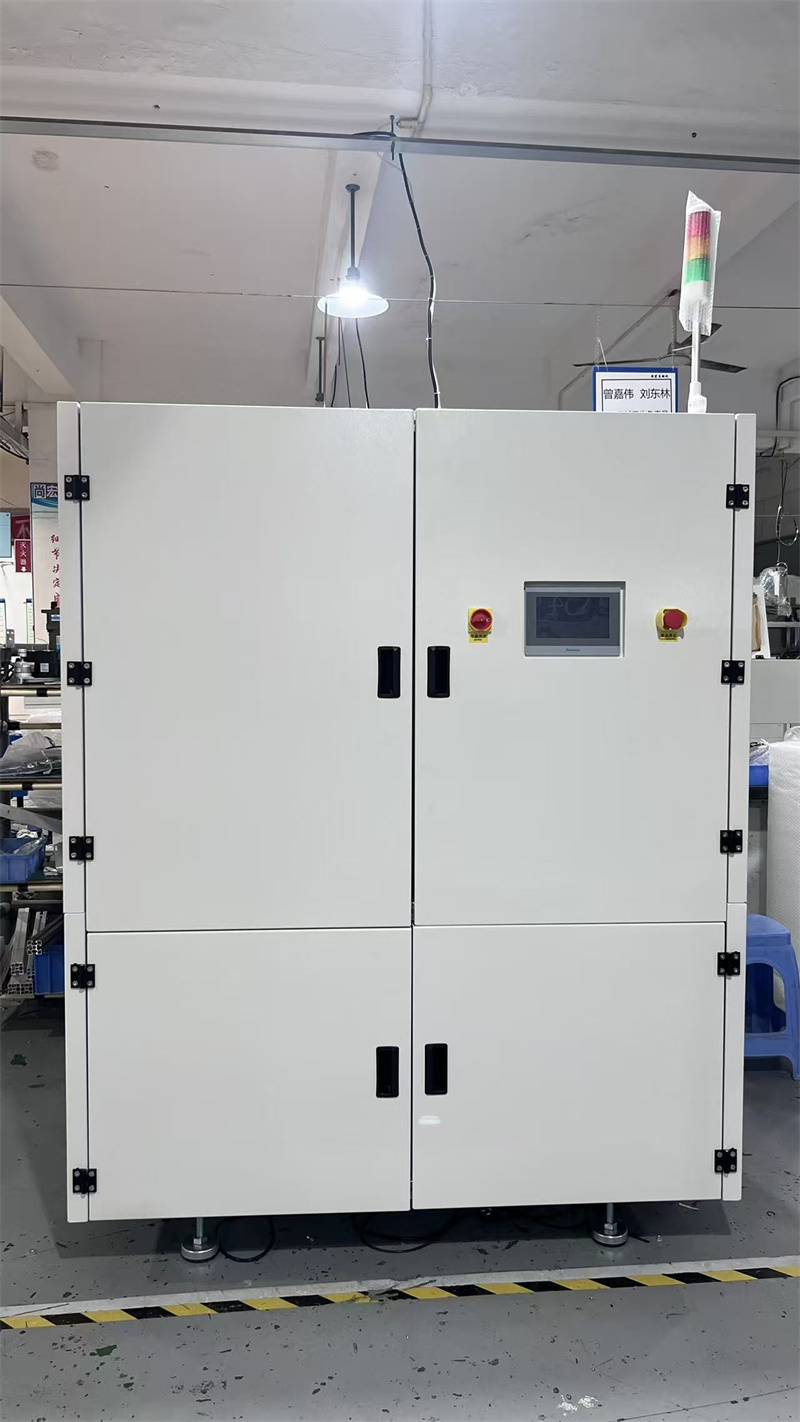

Circulation PCB Loader
Model: LD-1500-BTN
The Circulation PCB Loader (LD-1500-BTN) supports large-capacity cycling operation with extended magazine capacity. Suitable for high-throughput SMT lines, it ensures continuous and stable board supply with minimal manual intervention.
Technical Specifications
| PCB Width | 50~450mm Adjustable |
| Transfer Height | 900±20mm |
| Transfer Speed | 0~15m/min Adjustable |
| Power Supply | AC 220V 50/60Hz |
| Air Supply | 0.4~0.6MPa |
Product Features
- Adjustable PCB width: 50~450mm for various board sizes
- SMEMA standard signal interface for seamless equipment integration
- Variable transfer speed: 0~15 m/min to match production line requirements
- Stable conveying mechanism with minimal PCB surface contact
- Power supply: AC 220V 50/60Hz with low power consumption
- Compact footprint suitable for space-limited SMT production environments
