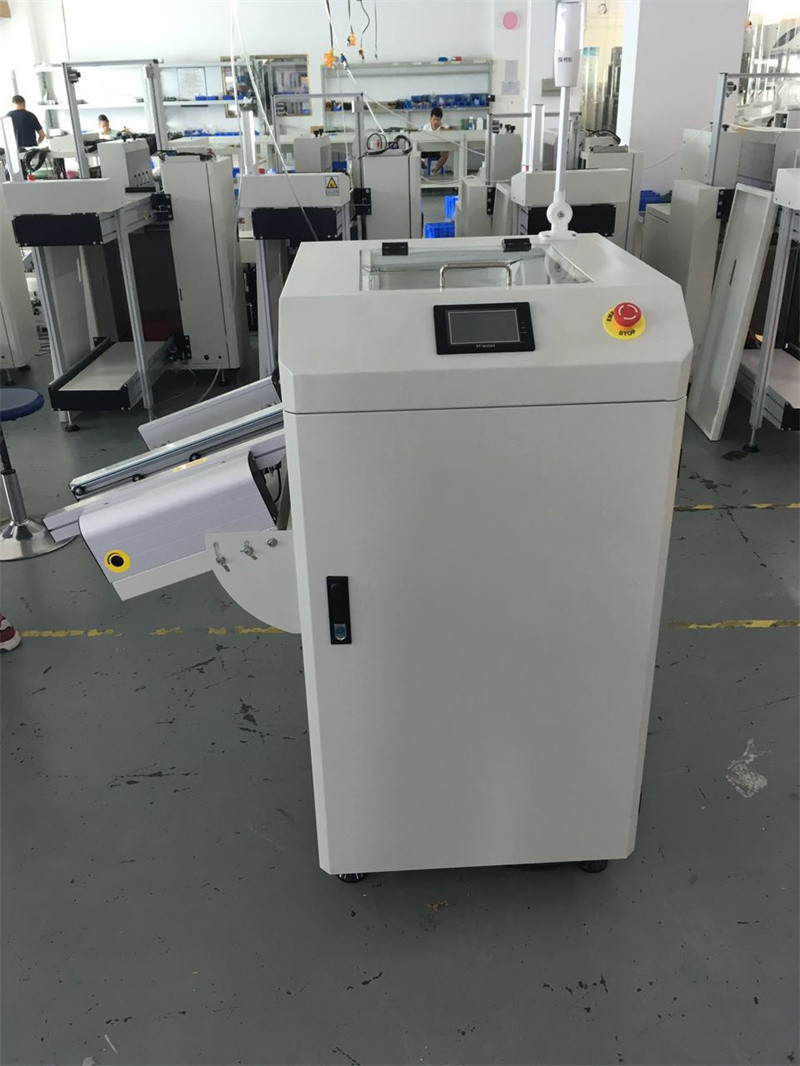

Corner Transfer Machine
Model: CN-L-TN
The Corner Transfer Machine (CN-L-TN) redirects PCB board flow by 90° at production line corners. It allows flexible L-shaped or U-shaped line layouts with smooth corner transitions and SMEMA-compatible control signals.
Technical Specifications
| PCB Width | 50~450mm Adjustable |
| Transfer Height | 900±20mm |
| Transfer Speed | 0~15m/min Adjustable |
| Power Supply | AC 220V 50/60Hz |
| Air Supply | 0.4~0.6MPa |
Product Features
- Adjustable PCB width: 50~450mm for various board sizes
- SMEMA standard signal interface for seamless equipment integration
- Variable transfer speed: 0~15 m/min to match production line requirements
- Stable conveying mechanism with minimal PCB surface contact
- Power supply: AC 220V 50/60Hz with low power consumption
- Compact footprint suitable for space-limited SMT production environments
