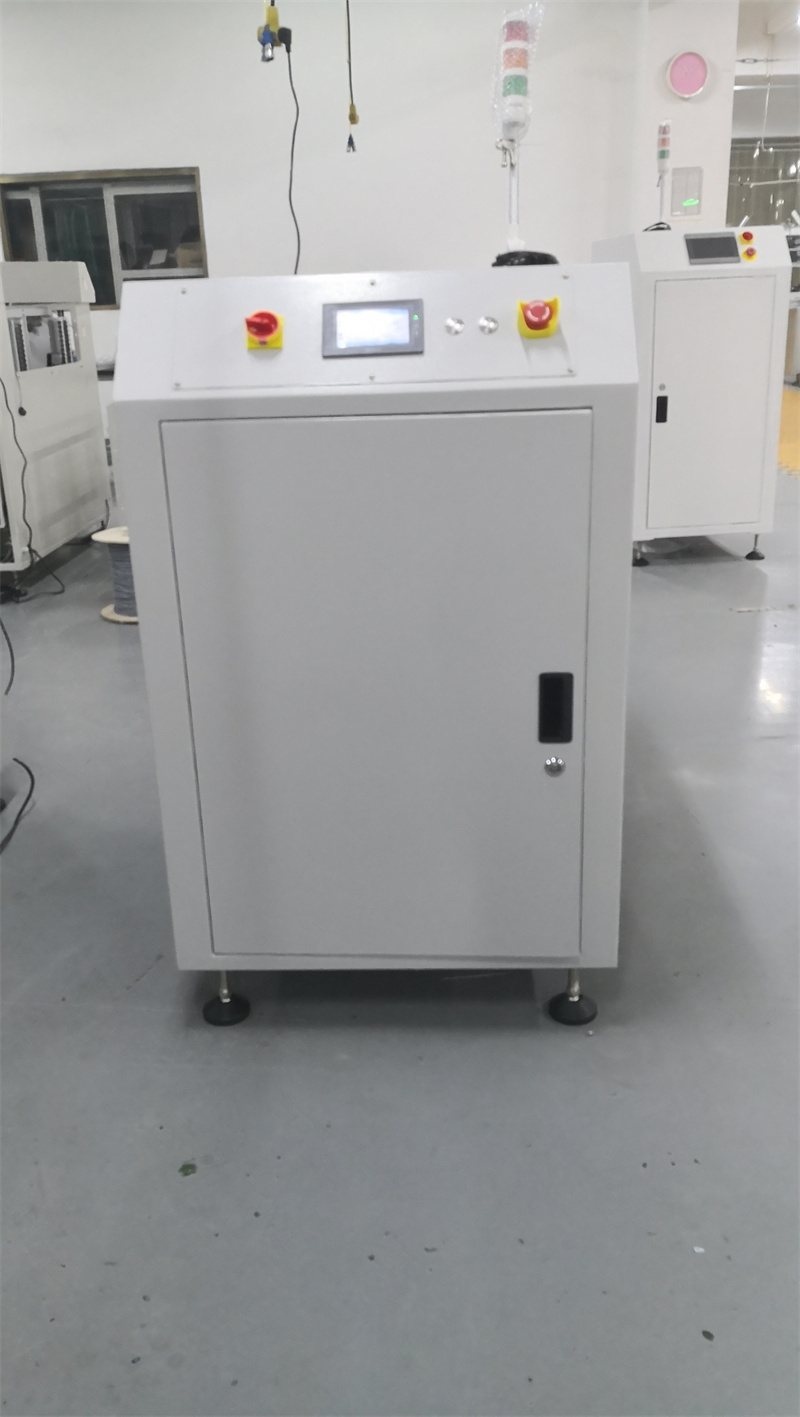

Elevator / Lifter
Model: CL-550-S
The Elevator / Lifter (CL-550-S) transfers PCB boards vertically between different height levels within SMT production lines. It enables multi-level production line layouts with accurate positioning and SMEMA signal integration.
Technical Specifications
| PCB Width | 50~450mm Adjustable |
| Transfer Height | 900±20mm |
| Transfer Speed | 0~15m/min Adjustable |
| Power Supply | AC 220V 50/60Hz |
| Air Supply | 0.4~0.6MPa |
Product Features
- Adjustable PCB width: 50~450mm for various board sizes
- SMEMA standard signal interface for seamless equipment integration
- Variable transfer speed: 0~15 m/min to match production line requirements
- Stable conveying mechanism with minimal PCB surface contact
- Power supply: AC 220V 50/60Hz with low power consumption
- Compact footprint suitable for space-limited SMT production environments
