Loading/Unloading Machine

Auto PCB Loader

Model: LD-250

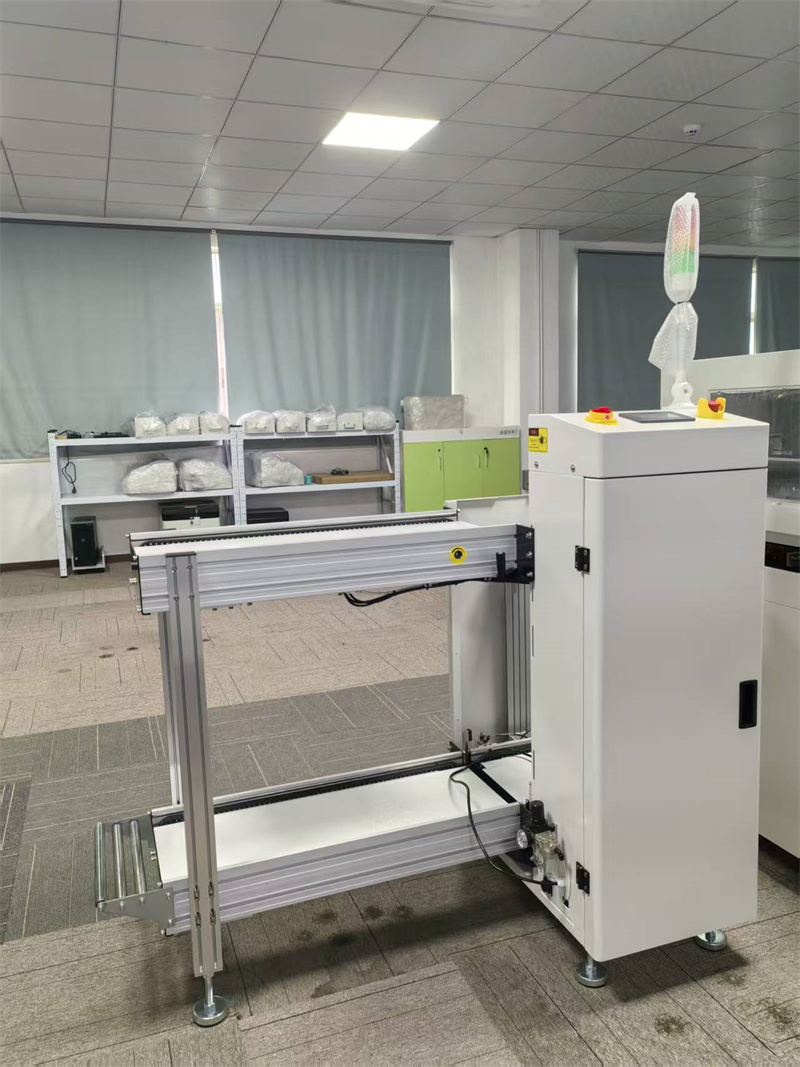

The Auto PCB Loader (LD-250) is a fully automated PCB board loading device designed for the start of SMT production lines. Upon receiving the downstream request signal, it feeds PCB boards one by one from the magazine rack, featuring PLC control, color touchscreen, and SMEMA standard signal interface.

Technical Specifications

Item	Specification
Machine Dimensions (mm)	1330(L)765(W)1250(H)
PCB Size (mm)	5050~L330W250
Load Capacity	2KG
PCB Loading Time	6.0 sec
Working Height (mm)	920±30(std)
Power Supply & Wattage	AC220V±10V, 50/60HZ
Air Supply Pressure	4-6bar
PCB Thickness	Min. 0.4mm
Pitch Selection	10. 20. 30. 40mm selectable
Note	Without magazine box

Product Features

Used at the start of SMT production lines to transfer PCBs. Upon receiving a signal from downstream, it pushes boards one by one from the PCB magazine rack.
1. PLC control system + color touchscreen + LED 3-color indicator light
2. Supports three magazine racks for continuous cycling operation
3. Special circuit design ensures smooth and stable PCB ejection
4. SMEMA standard 4-pin signal cable, compatible with other equipment
5. Adjustable pitch selection: 10, 20, 30, 40 mm
